Open Frame Outdoor IP66 LCD Monitor
Outdoor IP66 LCD Monitor
Open Frame High Brightness
Available Size: 32" 43" 49" 55" 65" 75"
Wide Working Temperature -20~ +70℃
Builti-in Smart Temperature Controller
3000 cd/㎡ Sunlight Readable+Auto Light Sensor
Protection Rate: IP66+5mm AG tempered Glass
Support HDMI input DP input or Android/WIndows/UBUNTU
Aluminum Housing
Optional: Touch Screen

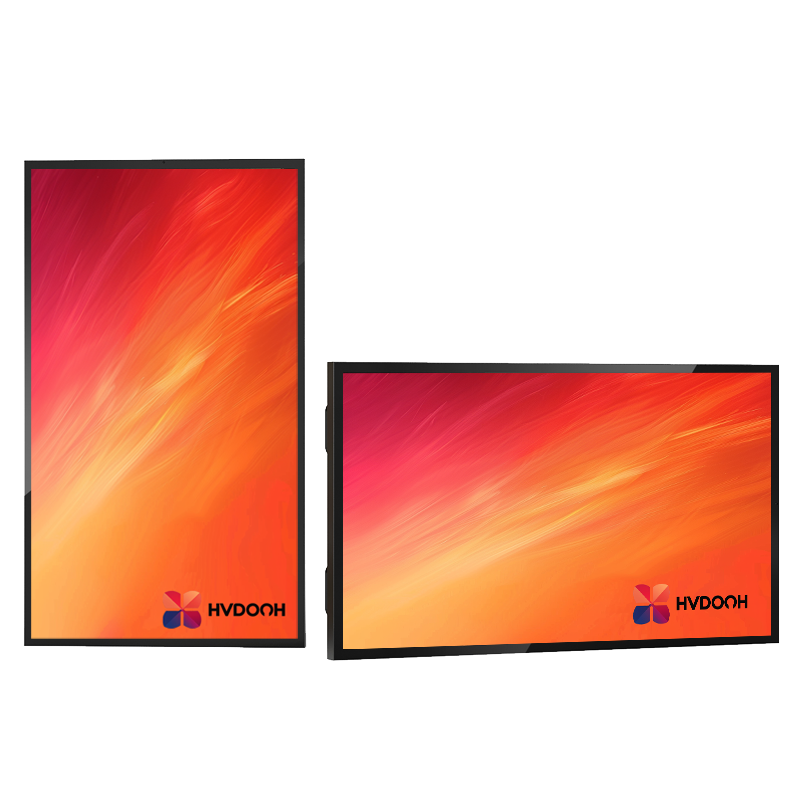

Open Frame High Brightness Outdoor IP66 LCD Monitor
Brief INTRO
Our Open Frame High Brightness IP66 LCD Monitor is available in sizes 32″, 43″, 49″, 55″, 65″, and 75″.
It features High TNI industrial-grade LCD panels, capable of operating in temperatures ranging from -20℃ to 70℃. The MINI LED backlight system ensures high brightness and low power consumption, making it both energy-efficient and eco-friendly.
The monitor includes automatic light sensing technology to adjust brightness based on the surrounding environment. Its full aluminum housing and heat-dissipating aluminum backplate enhance cooling efficiency. The smart temperature control system reduces backlight brightness to 70% when internal temperatures exceed 65℃ to lower power consumption and heat generation, and it restores normal brightness when temperatures drop to 50℃.
Optional features include LCD driver boards with HDMI and DP input interfaces, or built-in Windows PC or Android Media Player. Touch functionality is also available as an option.
With an IP66 rating and 5mm thick AG tempered glass surface, this monitor is designed for durability and reliable performance in various harsh environments.
FAQ
Our LCD digital signage comes in a variety of sizes: 32" 43" 49" 55" 65" 75".
Yes, they are sunlight readable, feature ultra high brightness from 2500nits to 5000nits.
The average lifespan of our LCD monitor is around 50,000 hours（Support 7/24), ensuring long-term reliability and performance.
Our displays support multiple operating systems, including Android, Windows, and Linux, to meet different application needs.
The installation is straightforward and can be performed by professional technicians. We also provide detailed installation guides to assist. Also we can provide customized mounting to fit your housing.
Yes, our products have passed several quality certifications, including CE, FCC, and RoHS, ensuring they meet international standards.
Our products come with a standard one-year warranty, covering manufacturing defects and performance issues. Extended warranty options are also available.
No, because our IP66 LCD monitor is dust-proof and waterproof. So it doesn't need a waterproof housing any more.
